Continuous Hinges

Full Concealed - For Lead Lined Doors

Manufacturer: ABH
  • Continuous Geared Hinges
This product qualifies for FREE shipping!
Quantity:

Product Description

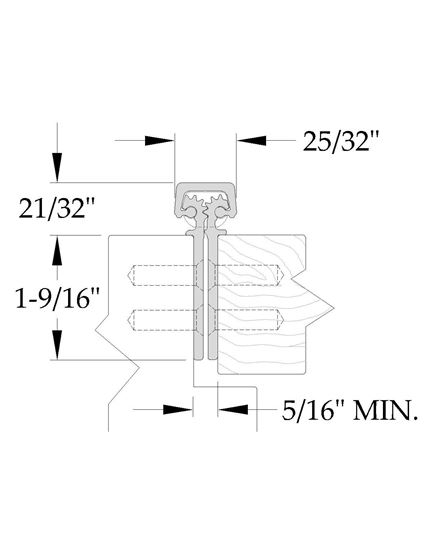

A110LL – Flush Mount

  • Full concealed, heavy duty
  • No door inset, flush mount
  • 48” door width maximum
  • 1,000 lbs. door weight maximum
  • Lead-lined staggered hole pattern
  • Comparable to Hager 780-110, Select SL11, Stanley 661 and Ives 112

A111LL – 1/8” Door Inset

  • Full concealed, heavy duty
  • 1/8” door inset
  • 48” door width maximum
  • 1,000 lbs. door weight maximum
  • Lead-lined staggered hole pattern
  • Comparable to Hager 780-111 and Select SL18

A240LL – 3/32” Door Inset

  • Full concealed, heavy duty
  • 3/32” door inset
  • 48” door width maximum
  • 1,000 lbs. door weight maximum
  • Lead-lined staggered hole pattern
  • Comparable to Hager 780-224, Select SL24, Stanley 662 and Ives 224

A270LL – Flush Mount – For 2” Doors

  • Full concealed, heavy duty
  • No door inset, flush mount
  • For use of 2” thick door
  • 48” door width maximum
  • 1,000 lbs. door weight maximum
  • Lead-lined staggered hole pattern
  • Comparable to Hager 780-226 and Select SL27

A410LL – Flush Mount – For Swing Clear Hinges

  • Full concealed, heavy duty
  • No door inset, flush mount
  • Swing clear application
  • Door edge protection lip
  • For use on 1-3/4” thick door, square edged only
  • 48” door width maximum
  • 1,000 lbs. door weight maximum
  • Lead-lined staggered hole pattern
  • Comparable to Hager 780-041 and Select SL41

Fasteners: 12-24 x 7⁄8” undercut self-drilling, thread-forming tek machine screws for frame and 1⁄4-20 sex bolts and shoulder bolts for door (not included)

Fire Rating

  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes
