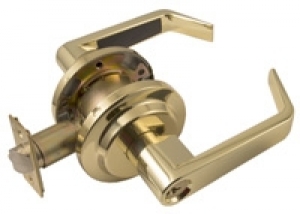

L100 Series Leversets – Grade 2 Standard Duty
The L100 Series is a complete line of Grade 2 commercial leversets. Built with independent return springs in each lever and with an optional clutch feature to protect against excessive torque, these levers resist sagging. The L-shaped lever design with less than 1⁄2” gap between the handle and the door meets most accessibility codes.
Function:
- Entrance/Office (L100): Pushing and turning inside button locks outside lever requiring use of key until button is manually unlocked. Pushing inside button locks outside lever until unlocked with a key or inside lever is turned. Inside lever always retracts the latch.
- Passage (L110): Both levers always retract the latch
- Privacy (L120): Pushing inside button locks outside lever until inside lever is turned. Emergency tool can be used to unlock outside lever. Inside lever always retracts the latch.
- Exit (L130): Blank plate outside, inside lever always free
- Storeroom (L140): Outside lever never retracts the latch. Entrance by key only. Inside lever always retracts the latch.
- Classroom (L150): Classroom. Outside lever is locked and unlocked with a key in the outside cylinder. The inside lever always retracts the latch.
- Dummy (L160): Pull only, one side of door trim.
Certifications:
- ANSI/BHMA certified A156.2 Series 4000, Grade 2
- ADA Compliant
- UL Listed for 3 hour fire door as noted
Specifications:
- Door Thickness: 1-3/8” to 1-7/8"
- Door Preparation: 2-1/8" diameter bore required
- Backset: 2-3/4”
- Handing: Non-handed
- Strike: ANSI 4-7/8” x 1-1/4” full lip standard
Warranty:
- 15 year limited mechanical warranty
- 1 year finish warranty from date of purchase
