Half Surface Continuous Hinges

Half Surface

Manufacturer: ABH
  • Continuous Geared Hinges
Quantity:

Product Description

A530 – 1-9/16” Frame Leaf – 3/32” Inset

  • Half surface, heavy duty
  • 3/32” door inset
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-053, Select SL53 and Ives 053

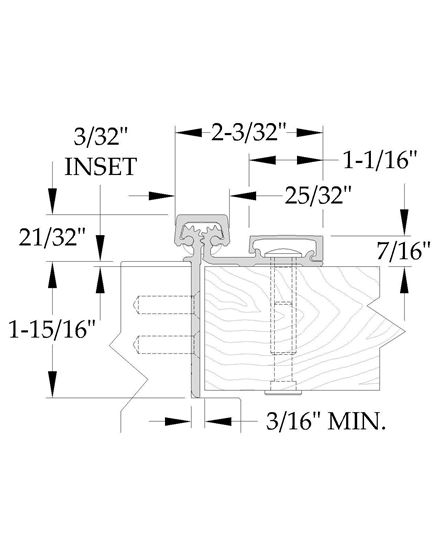

A540 – 1-15/16” Frame Leaf – 3/32” Inset

  • Half surface, heavy duty
  • 3/32” door inset
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-054, Select SL54 and Ives 054

A450 – 1-9/16” Frame Leaf – 9/32” Inset

  • Half surface, heavy duty
  • 9/32” door inset
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-045 and Ives 045

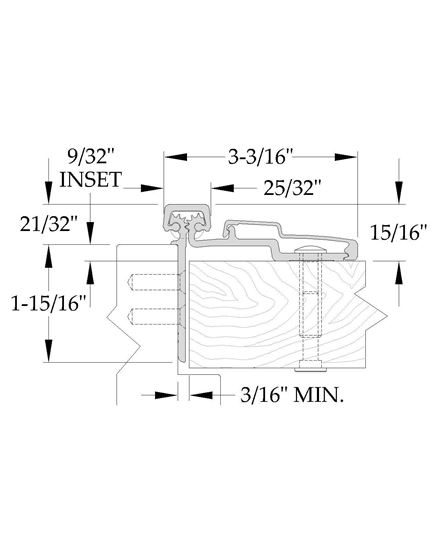

A460 – 1-15/16” Frame Leaf – 9/32” Inset

  • Half surface, heavy duty
  • 9/32” door inset
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-046 and Ives 046

A550 – For Center Hung & Double Egress Conversion

  • Half surface, heavy duty
  • For double egress and center hung conversions
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-155

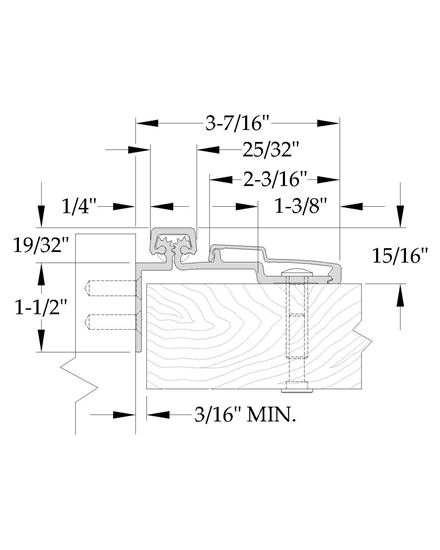

A213 – For Center Hung Door Application where Finger Guards Require a Long Reach

  • Half surface, heavy duty
  • Center hung door application where finger guards require a long reach
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-213

A211 – 1/16” Inset – Swing Clear Application

  • Half surface, heavy duty
  • 1/16” door inset
  • Swing clear application
  • 48” door width maximum
  • 450 lbs. door weight maximum
  • Comparable to Hager 780-211


Fasteners: 12-24 x 7⁄8” undercut self-drilling, thread-forming tek machine screws for frame and 1⁄4-20 sex bolts and shoulder bolts for door (not included)

Fire Rating

  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes
